  • Name: Cylindrical Rubber Fender
  • No.: JCY150 ~JCY2000
  • Added time: 2013-12-02
  • Views : 796



Specifications

Marine Dock Cylinder Fender:
1. BV PIANC standard approved
2. Wide range of available sizes
3. Easy to install

1.Description of Marine Dock Cylinder Fender:


JIER JCY Series Cylinder Rubber Fenders are commonly used fenders recommended for all types of applications to ensure a safe and linear berthing to a variety of vessels. Adequate installation is simply achieved by using chains, bars, ropes or specially designed ladder brackets.

Cylinder Rubber Fender progressive reaction makes them ideal for berths serving large and small vessels. The wide range of available sizes (as well as almost any intermediate size) means cylindrical rubber fenders can be closely matched to each application.

Cylindrical Rubber Fenders proportional increase of reaction force and energy absorption all the way to the rated deflection is an advantage resulting in softer berthing.



2. Key Attributes of Marine Dock Cylinder Fender:



1).  Cylinder Rubber FenderEconomical solution to protect most berthing structures

2).  Cylinder Rubber Fender : Less surface pressure, reasonable energy absorption

3).  Cylinder Rubber Fender : Less reaction force at lower deflection

4).  Cylinder Rubber Fender : Thick wall resists abrasion and wear

5).  Cylinder Rubber Fender : Linear load-deflection curve

6).  Cylinder Rubber Fender : Easy to install and maintain



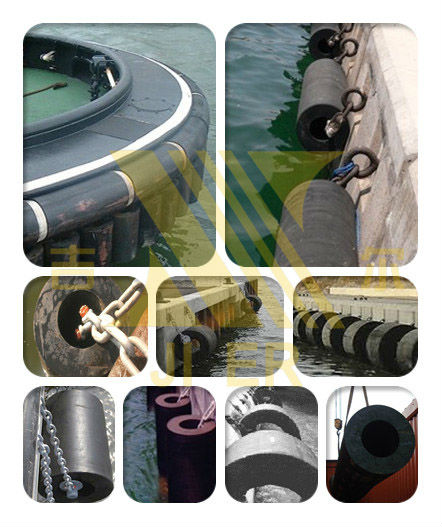

3. Applications of Marine Dock Cylinder Fender:



1. Bulk cargo berths

2. Fishing and workboat berths

3. General cargo quays

4. Pontoons and floating structures

5. RoRo and ferry terminals

6. Tug boats and havens



4. Performance Testing/Test Protocol

JIER routinely tests fenders to verify their consistent performance and quality. JIER adopts the latest verification testing protocols defined by PIANC and ASTM to confirm rubber fenders meet the published Rated Performance Data.



ALL JIER CYLINDER  RUBBER FERNDERS ARE APPROVED BY BUREA VERITAS TO PIANC 2002 AND ASTM FZ192-05 PROTOCOLS.





5. PATENT No. 1310697 JIER JCY CYLINDRICAL RUBBER FENDER





6. General dimensions of Marine Dock Cylinder Fender:



Specification
The ratio of outer diameter to inner diameter of standard cylindrical fender is 2:1

Type

Outer Diameter(mm)

Inner Diameter(mm)

Length(m) (kg/m)

JCY150

150

75

 All lengths can be supplied to meet the customers’ request

JCY200

200

100

JCY250

250

125

JCY300

300

150

JCY400

400

200

JCY500

500

250

JCY600

600

300

JCY700

700

350

JCY800

800

400

JCY900

900

450

JCY1000

1000

500

JCY1100

1200

600

JCY1200

1400

700

JCY1300

1600

800

JCY1400

1400

700

JCY1500

1500

750

JCY1600

1600

800

JCY1700

1700

850

JCY1800

1800

900

JCY1900

1900

950

JCY2000

2000

1000

Note: cylindrical rubber fenders of other sizes can be produced according to customers’ request.
